2-Way Reinforced Aluminum Foil Scrim Kraft Tape - AF7105B
Description:
2-way Foil-Scrim-Kraft facing laminated fiberglass blanket backing, combined with a transparent high performance synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.
Standard Products:
| Product code | Aluminum Foil Scrim Kraft Tape - AF7105B |
| Material | Aluminium Foil Scrim Kraft facing laminated fiberglass |
| Gule | High Performance Synthetic Rubber-Resin Adhesive |
| Cut Roll | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Log Roll | 1200mm x 45M / 50M |
| Jumbo Roll | 1200mm x 500M / 750M |
| Sample | Free, Freight on buyer |
Typical Physical Properties:
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 120 Micron | 4.8 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 170 Micron | 6.8 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 25 N/25mm | 90 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tensile Strength | 120 N/25mm | 27.3 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | 1.0 % | 1.0 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ~ +80 °C | -4 ~ +176 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
Features:
• Excellent reflection of both heat and light, thermal insulation.
• High quality adhesive with super strong adhesion, reliable and durable of holdin.
• Low moisture vapor transmission rate.
• Good sealing effect
Applications:

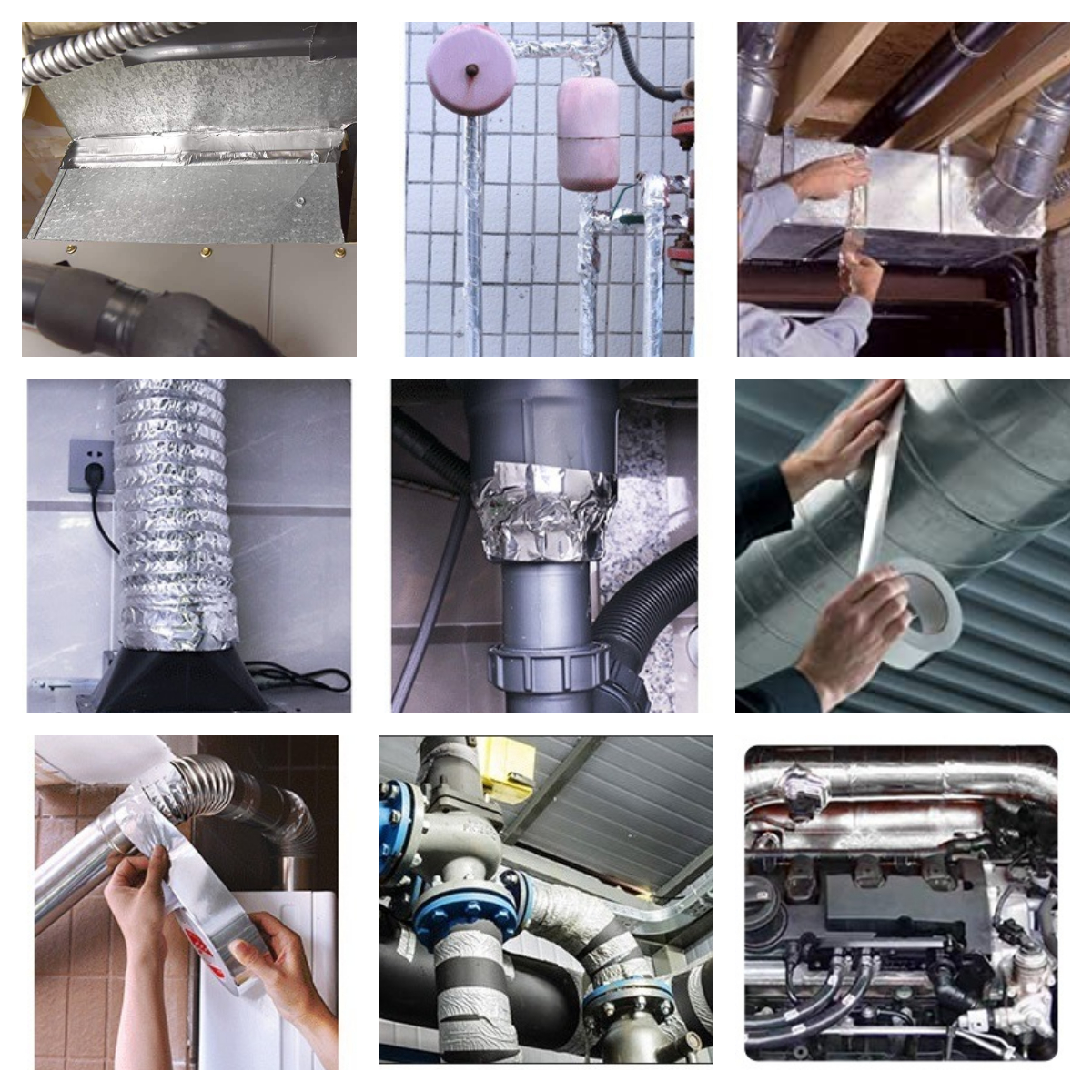

HVAC industry for joining and sealing flexible air duct seams and connections.
Suitable for various industries, Out packaging of refrigerators and freezers, dealing edge joints, etc
Packaging & Shipping
Surface Preparation
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
Product Use
It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
